Insul-Baffle Roof Insulation Spacer, 2x 650mm x 6m Rolls Per Box
Masons Insul-Baffle Roof Insulation Spacer
Masons Insul-Baffle 2x 650mm x 6m per box | Roof Insulation Baffle by Southtile Ltd |
Masons Insul-Baffle is a clear, semi-rigid PVC roof insulation spacer designed to maintain separation between bulk ceiling insulation and roof underlay near the eaves. Installed over rafters or truss top chords, its crenelated Dragon Channel profile helps preserve a minimum 25mm air gap and can provide an airflow path as part of a designed passive-stack roof ventilation system. Each roll measures 650mm wide x 6m long. Suitable for pitched, timber or light-steel framed roofs. Not suitable for skillion roofs.
Buy through Southtile Ltd
Talk to Southtile about Masons Insul-Baffle for your next insulation or new-build project.
Southtile Christchurch
237 Annex Road, Christchurch, Canterbury
Phone: 03 338 6480
Southtile Invercargill
654 North Road, Invercargill, Southland
Phone: 03 215 917
Product specifications
| Specification | Detail |
|---|---|
| Product | Masons Insul-Baffle |
| Product code | BFFL.5X650X6 |
| Material | Clear thermoplastic PVC |
| Profile | Crenelated semi-rigid spacer |
| Roll size | 650mm wide x 6 lineal metres |
| Height | 45mm |

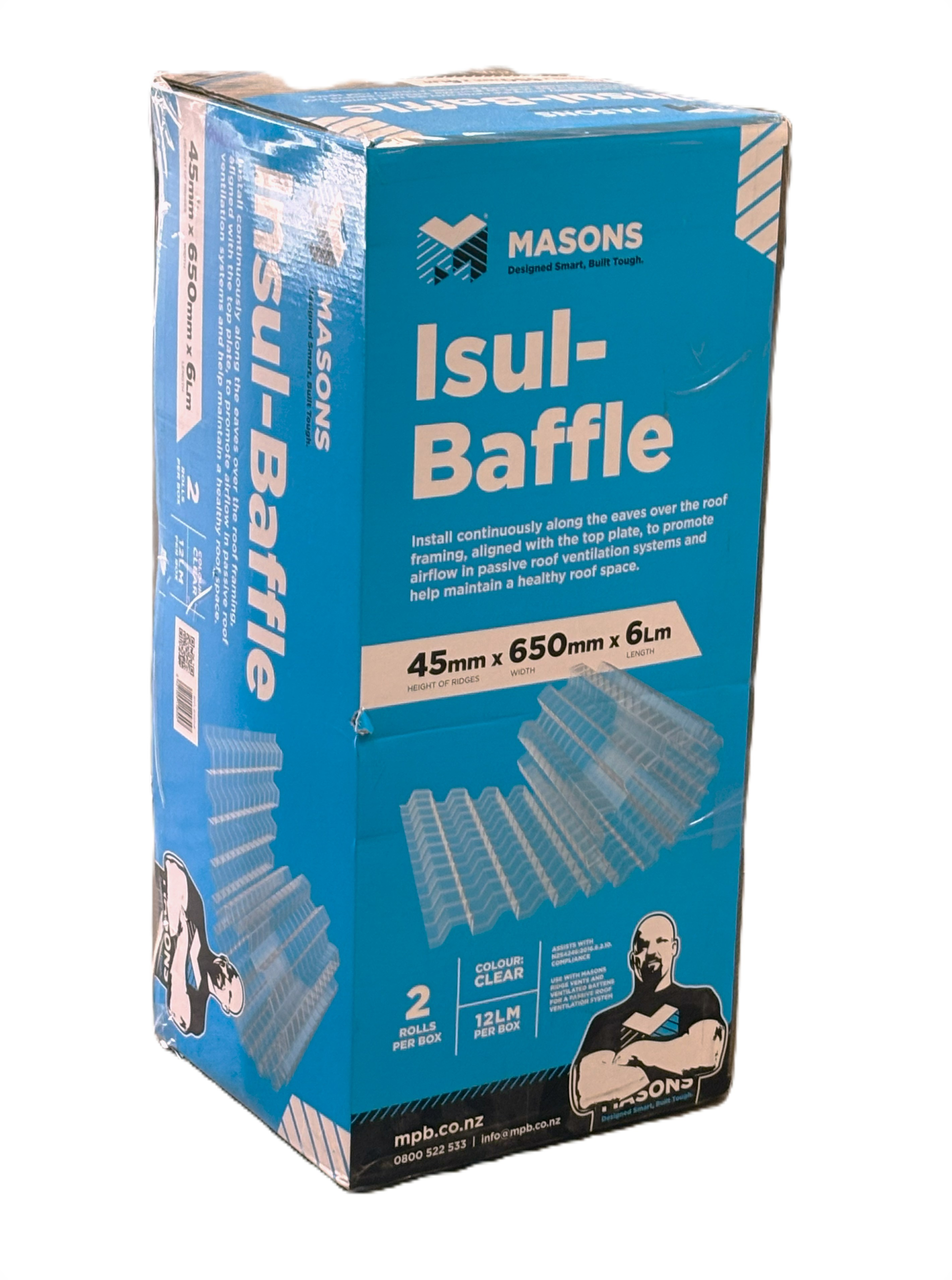

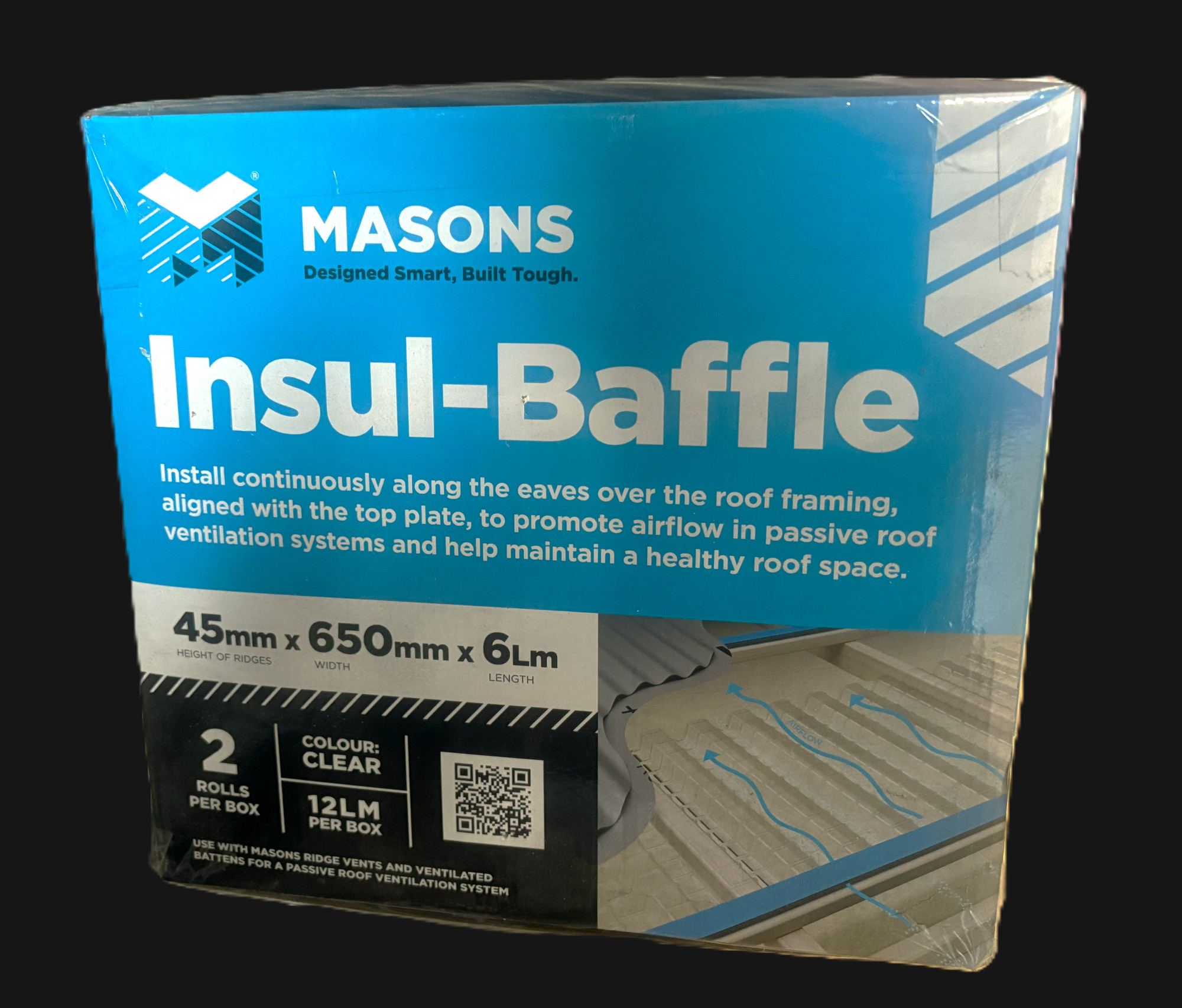

| Pack quantity | Two rolls per carton |
| Coverage per roll | 3.9m² nominal sheet area |
| Primary use | Separating roof underlay from bulk ceiling insulation |
| Installation position | Over rafters or truss top chords, generally near the eaves |
| Warranty | 15 years when correctly installed in accordance with Masons’ requirements |
| Maintenance | None required |
Suitable applications
Masons Insul-Baffle is suitable for:
- Pitched, truss-framed roofs.
- Long-run metal roofing.
- Metal-tile clad roofs.
- Timber or light-steel roof framing.
- New residential construction.
- Re-roofing and selected renovation projects.

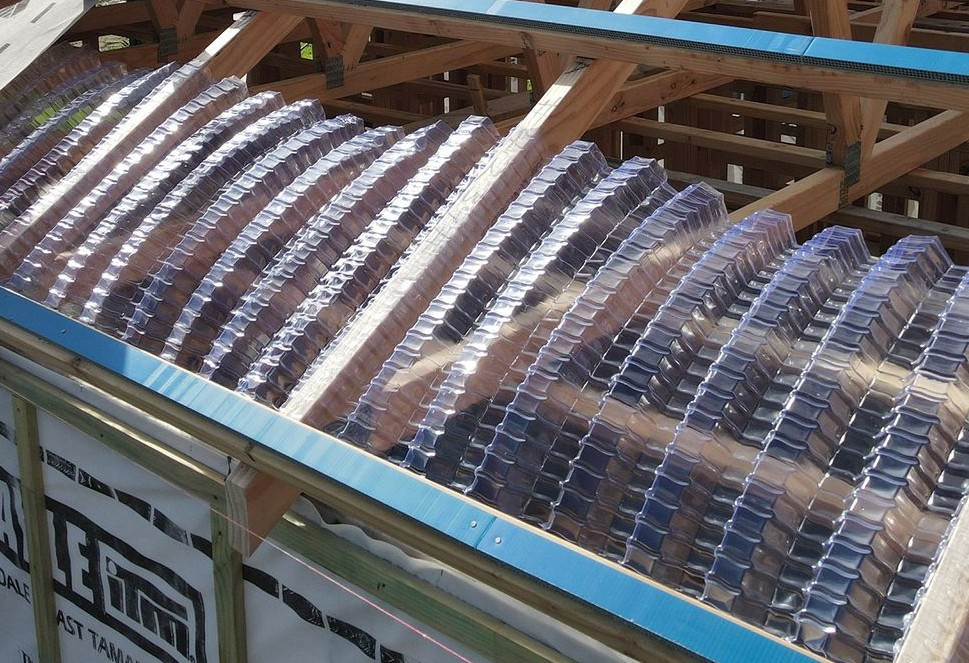

Basic installation information
Run the Insul-Baffle parallel with the eaves and place it over the rafters or truss top chords. Secure it using suitable staples, flat-head clouts or wafer-head screws. Do not pull or stretch the product tightly, as this can deform the crenelated channels. Where rolls join, overlap them by at least one full crenelation and make the join over the roof framing.
