Fire Bricks – Side & Back Bricks + Baffle

Suitable for Masport LE3000 & LE5000 Fireplaces

Aftermarket Refractory Bricks Made by Southtile Ltd

These high‑temperature refractory fire bricks are custom‑made to suit the Masport LE3000 and LE5000 wood burners. Designed to withstand extreme heat, they help protect your firebox, improve burn efficiency, and extend the life of your fireplace.

Because some Masport models vary slightly, always measure your existing bricks before ordering.

Side & Back Fire Bricks (Same Size Bricks)

220 × 170 × 25 mm – Approx. 2 kg Each

These versatile bricks are used as both side bricks and back bricks in the LE3000 and LE5000 fireboxes.

Features

• Size: 220 × 170 × 25 mm

• Weight: Approx. 2 kg

• Used for: 2 × back bricks + 1 × brick on each side

• High‑temperature refractory castable

• Easy to install

• Helps increase heat output & firebox efficiency

Baffle Fire Brick

470 × 215 × 25 mm – Approx. 6.1 kg

This heavy‑duty baffle brick sits above the fire bricks and plays a crucial role in heat retention and efficient burning.

Features

• Size: 470 × 215 × 25 mm

• Weight: Approx. 6.1 kg

• Suitable for: Masport LE3000 & LE5000

• Helps maintain high firebox temperatures

• Improves burn efficiency & reduces fuel use

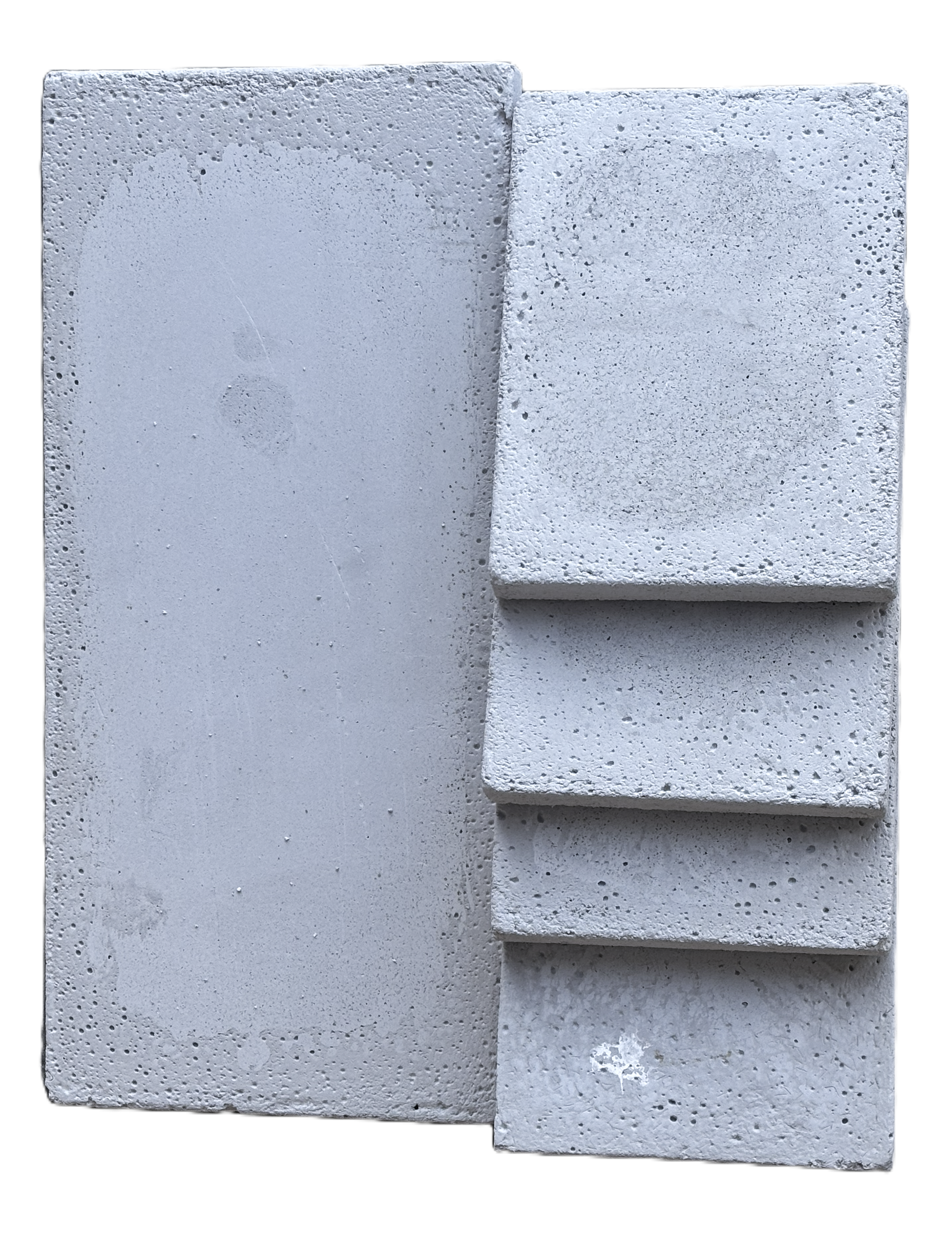

Fire Brick Set Configuration

For Masport LE3000 & LE5000:

• 2 × Back Bricks (220 × 170 × 25)

• 2 × Side Bricks (220 × 170 × 25)

• 1 × Baffle Brick (470 × 215 × 25)

All bricks (except the baffle) are the same size.

Important Fitment Note

Masport fireboxes have minor size variations depending on model year. ✔️ Measure your existing bricks before ordering If unsure, email: info@southtile.co.nz

Custom Fire Bricks Available

Don’t see the size you need? Southtile can custom‑make fire bricks from high‑quality refractory castable. 📧 info@southtile.co.nz

Delivery & Availability

• NZ‑wide delivery

• Click & Collect: Christchurch & Invercargill

• Made by Southtile Ltd – NZ’s Refractory & Fireplace Brick Specialists
